Static State Contact Angle Meter | Water Droplets Angle Tester (Static State Standard Type)
Model: SZ-CAMB1／SZ-CAMB2／SZ-CAMB3 This series is used to test and analyze the contact angle of liquid on solid surface, the surface tension of liquid, the surface energy of solid, etc. The analysis of hydrophobicity, wettability, cleanliness, treatment effect, competition, adsorption, absorption and spreading of liquids are realized. It is widely used in many fields such as chemical industry, medicine, food, electronics, printing and dyeing, spraying, military industry, science and education.
Patent No.: ZL 2019 2 0196946.8
|

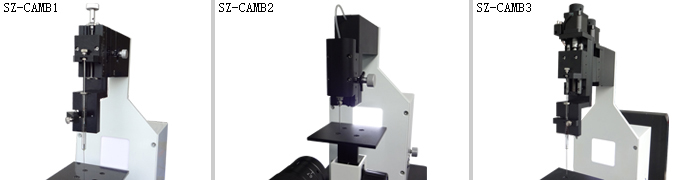

■ Selection Guide
|
Model |
SZ-CAMB1 |
SZ-CAMB2 |
SZ-CAMB3 | |
|
Drip System |
Drip Way |
Manual Type |
Electric Type |
Automatic Type |
|
Min. Drip Volume |
|
2μl / Drop |
0.1μl / Drop | |
|
Drip Precision |
±1μl |
±0.5μl |
±0.05μl | |
|
Dimension |
W680×D280×H |
W745×D280×H |
W680×D280×H | |
|
Weight |
|
|
| |
|
Power |
1∮ AC220V 50HZ |
1∮ AC220V 50HZ |
1∮ AC220V 50HZ | |
■ Specifications
|
Contact |
Calculation Method |
Height-Width Method, Angle Measuring Mmethod, Ring Method, Ellipse Method, Tangent Method, Young-Laplace Method |
|
|
0°～180° | |
|
Test Error |
±0.1° | |
|
Test Resolution |
0.001° | |
|
Surface / Interfacial Tension Test |
Calculation Method |
Manual Method, Automatic Method |
|
|
0.01～2000mN/m | |
|
Test Error |
±0.1% | |
|
Test Resolution |
0.001mN/m | |
|
Estimation of Surface Energy |
Estimation Model |
Fowkes, Extended Fowkes, Owens-Wendt, van |
|
Liquid Database |
Preset urface tension and component data of 37 kinds of commonly used liquids | |
|
Drip System |
Drip Way |
Automatic Type |
|
Min. Drip Volume |
0.1μl / Drop | |
|
Drip Precision |
±0.05μl | |
|
Sample Stage |
|
X100×Y |
|
Mobile Stroke |
X86×Y100×Z | |
|
Mobile Mode |
Manual |
■ Optional Accessories

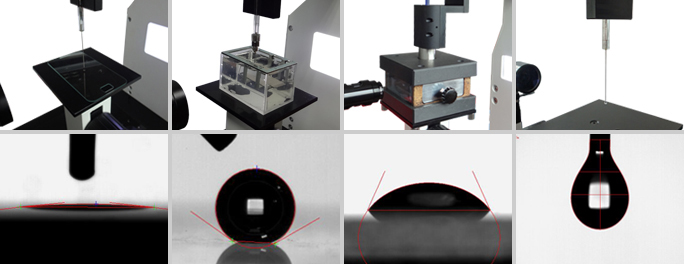

■ Examples of Application
| Link: |
