Surface Cleanliness Analyzer (Sample Table Size Custom-Made Model)
Model: SZ-CAMB3-6080 This machine is a large-scale contact angle measuring instrument, which is customized according to the size of user samples. By measuring the contact angle of the liquid on the solid surface, the wettability of the liquid to the solid is judged, and then the cleanliness and treatment effect of the solid surface are tested. It is widely used in contamination detection, adhesion analysis and surface treatment effect evaluation of large sample surfaces such as glass, LCD screen, touch screen, packaging substrate, etc.
|
■ Test Standard
■ Specifications
|
Contact |
Calculation Method |
Height-Width Method, Angle Measuring Mmethod, Ring Method, Ellipse Method, Tangent Method, Young-Laplace Method |
|
|
0°～180° | |
|
Test Error |
±0.1° | |
|
Test Resolution |
0.001° | |
|
Surface / Interfacial Tension Test |
Calculation Method |
Manual Method, Automatic Method |
|
|
0.01～2000mN/m | |
|
Test Error |
±0.1% | |
|
Test Resolution |
0.001mN/m | |
|
Estimation of Surface Energy |
Estimation Model |
Fowkes, Extended Fowkes, Owens-Wendt, van |
|
Liquid Database |
Preset urface tension and component data of 37 kinds of commonly used liquids | |
|
Drip System |
Drip Way |
Automatic Type |
|
Min. Drip Volume |
0.1μl / Drop | |
|
Drip Precision |
±0.05μl | |
|
Sample Stage |
|
X600×Y |
|
Mobile Stroke |
X Axis= | |
|
Mobile Mode |
Manual | |
|
Dimension |
W1600×D1400×H | |
|
Weight |
| |
|
Power |
1∮ AC220V 50HZ | |

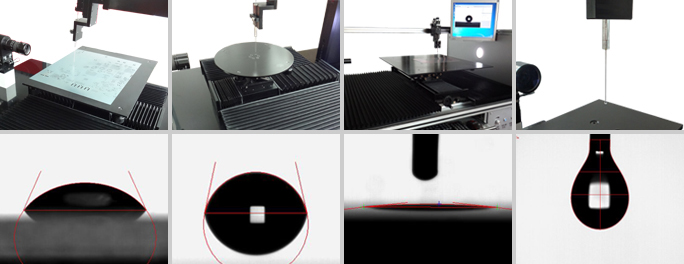

■ Examples of Application
| Link: |
