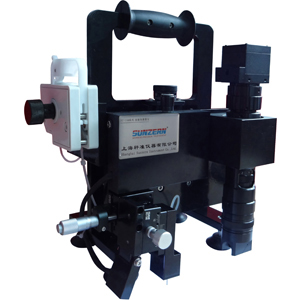

Portable Optical Contact Angle Meter (Old Style)
Model: SZ-CAME The machine adopts portable design. It can be directly placed on the surface of the sample to test the contact angle formed by the droplets on its surface, and then test the cleanliness, adhesion and treatment effect of the surface. It is widely used in nondestructive and mobile detection of large samples (such as glass, LCD screen), special-shaped samples (such as car body, bathtub), special working environment (such as outdoor environment, production line) and other fields.
|
|
Contact |
Test Method |
Sessile Drop Method |
|
Calculation Method |
Height-Width Method, Angle Measuring Mmethod, Ring Method, Ellipse Method, Tangent Method, Young-Laplace Method | |
|
|
0°～180° | |
|
Test Error |
±0.1° | |
|
Test Resolution |
0.001° | |
|
Surface |
Test Method |
Pendant Drop Method |
|
Calculation Method |
Manual Method, Automatic Method | |
|
|
0.01～2000mN/m | |
|
Test Error |
±0.1% | |
|
Test Resolution |
0.001mN/m | |
|
Other Functions |
Estimation of Surface Energy |
Fowkes, Extended Fowkes, Owens-Wendt, van |
|
Wettability Analysis |
Adhesion Work, Spreading Coefficient, Adhesion Tension | |
|
Optical System |
Camera |
3 million Pixels, Frame Rate 36fps |
|
Lens |
0.7～4.5× Continuous Zoom | |
|
Focus Mode |
Manual Focus, Software Detection Clarity | |
|
Light Source |
LED Cold Light Source, Adjustable Brightness | |
|
Drip System |
Drip Way |
Manual Peristaltic Pump Control Drops |
|
Drip Precision |
±1μl | |
|
Test Sample Size |
Length≥ | |
|
Dimension |
W260×D210×H | |
|
Weight |
| |
|
Power Supply Mode |
Lithium | |
